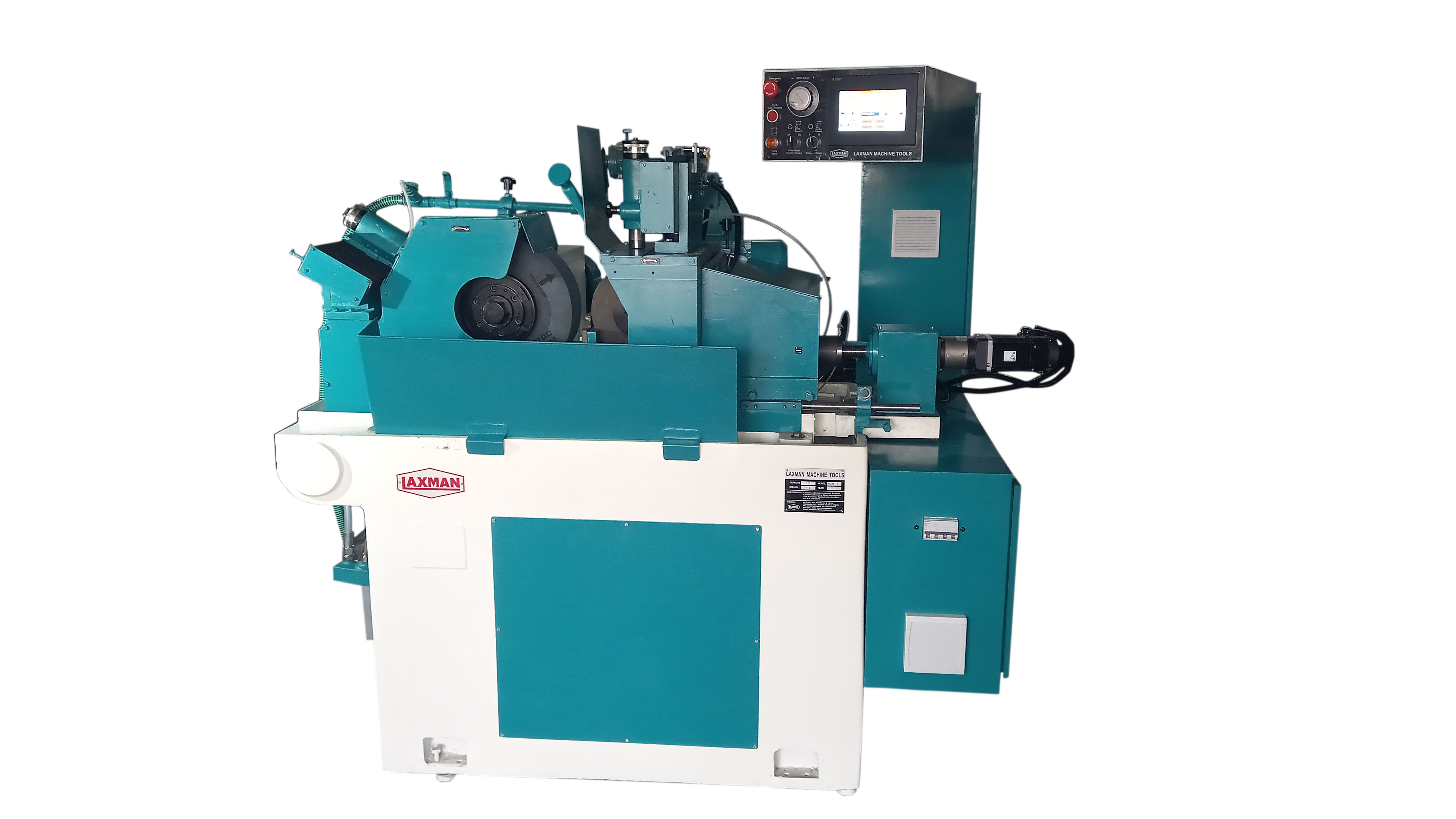

Auto Plunge Centerless Grinder

Name: Auto Plunge Centerless Grinder
Brand: LAXMAN MACHINE TOOLS
Price: 1000000 INR
Availability: InStock

Price 1000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Auto Plunge Centerless Grinder Specification

Rotation
Right Hand

Product Type
Auto Plunge Centerless Grinder

General Use
Precision cylindrical grinding operations in manufacturing

Material
Cast Iron body with alloy steel components

Type
Centerless Grinder

Weight (kg)
1800 kg

Computerized
No

Automatic
Yes

CNC Or Not
No

Control System
Automatic

Table Slide Way
Hardened and ground slideways

Grinding Wheel Size
350 mm x 125 mm x 127 mm

Grinding Wheel Speed
1850 RPM

Grinding Length
100 mm

Floor Space
2000 mm x 1200 mm

Spindle Speed
2850 RPM

Power
7.5 HP

Voltage
415 V

Dimension (L*W*H)
2000 x 1200 x 1500 mm

Color
Industrial Green / Off White

Grinding Accuracy
Up to 8 microns

Feed Mechanism
Auto and manual mode

Coolant System
Provided with filtration

Hydraulic System
Integral with separate tank

Safety Features
Overload protection, emergency stop switch

Electrical Panel
Dust and splash proof

Work Rest Material
Alloy Steel, nitride treated

Wheel Head Adjustment
Micro adjustment by handwheel

Wheel Balancer
Included

Noise Level
<75 dB(A)

Auto Plunge Centerless Grinder Trade Information

Minimum Order Quantity
1 Unit

Main Domestic Market
All India

About Auto Plunge Centerless Grinder

We have a highly trained workforce, which is fully dedicated in providing our clients with Auto Plunge Centerless Grinder. Used for grinding various types of metals, these products find application in industries such as automobile, aerospace, heavy engineering, electrical & engineering, textile, printing and ceramics. Longer service life, low maintenance, robust construction, corrosion & abrasion resistance, error free performance and energy efficiency are some of the main features of these products. Auto Plunge Centerless Grinder can be customized as per the requirements of our clients and is available with us at industry leading rates.

Other details:

Laxman Auto plunge centerless grinding machine Model LM-3 is designed for taking high accuracy in plunge grinding. It is a combination theory of hydraulic cylinder and cylindrical face cam. It has high accuracy harden came which can give ideal grinding feed by hydraulically operated solenoid valve without any wear and tear of lead screw and nut. It has precision control valve for adjust feed speed as per job requirement. We also adjust grinding depth of cut by proxy switches. It have also secondary solenoid valve for rapid approach and quick return. It has a timer to adjust spark out time in grinding process. It has many more function to gate perfect and accurate plunge grinding.

Advanced Precision for Manufacturing

Engineered exclusively for cylindrical grinding, this centerless grinder supports manufacturing industries demanding high precision. With advanced micro adjustment via a handwheel and grinding accuracy up to 8 microns, the machine delivers reliable results for batch or continuous operations. Its automatic control system streamlines processes, while the inclusion of both automatic and manual feed ensures adaptability for various production needs.

Robust Construction and Efficient Operation

The grinder boasts a sturdy cast iron body with alloy steel components, offering strength and longevity. Essential features like the hydraulic system with a separate tank and nitride-treated work rest enhance reliability and performance. The floor space required is compact considering its robust 7.5 HP power, boasting dimensions of 2000 x 1200 x 1500 mm and a weight of 1800 kg, making it suitable for various workshop layouts.

Enhanced Safety and User-Friendly Features

Safety is prioritized with overload protection and an emergency stop switch. The electrical panel is designed to resist dust and splashes, protecting internal components and ensuring safe operation. With a noise level below 75 dB(A), the machine maintains a comfortable work environment without sacrificing power or efficiency, delivering consistent grinding performance.

FAQs of Auto Plunge Centerless Grinder:

Q: How does the auto and manual feed mechanism work on this centerless grinder?

A: The machine provides both automatic and manual feed modes, allowing operators to select automatic feeding for continuous production runs or switch to manual feeding for precise adjustments on specialized components, ensuring flexibility and control during grinding operations.

Q: What benefits does the integrated coolant system with filtration offer?

A: The built-in coolant system continuously filters out contaminants, maintaining a clean grinding environment and ensuring consistent cooling of workpieces and wheels. This directly contributes to improved grinding accuracy, prolonged component life, and reduced maintenance requirements.

Q: When is micro adjustment via handwheel necessary during operation?

A: Micro adjustment by handwheel is essential during setup or fine-tuning the wheel head position for intricate grinding jobs. This feature allows operators to achieve precise alignment and results, vital for applications requiring high accuracy up to 8 microns.

Q: Where is the Auto Plunge Centerless Grinder typically used?

A: This grinder is ideally suited for manufacturing facilities across various industries in India and worldwide where precision cylindrical grinding is required. It is used in production lines, tool rooms, and workshops demanding tight tolerances and consistent surface finishes.

Q: What is the process for achieving high grinding accuracy with this model?

A: High accuracy is achieved through a combination of precise wheel head micro adjustments, a robust work rest made from nitride-treated alloy steel, auto/manual feed control, and consistent coolant filtration. The entire system is engineered to maintain tolerance levels up to 8 microns throughout the grinding process.

Q: How does the machine ensure user and equipment safety?

A: Safety is ensured by including overload protection, an emergency stop switch, and an electrical panel designed to resist dust and splashes. These features help prevent accidents and enable quick response during emergencies, promoting a secure working environment.

Q: What distinguishes this grinder in terms of usage and operational advantage?

A: The primary advantages include automatic operation, stable and low-noise performance (<75 dB(A)), compact floor space usage, and reliable results for both mass production and custom batches. Its durable construction and thoughtful safety features make it highly suitable for industrial applications needing precise cylindrical grinding.
